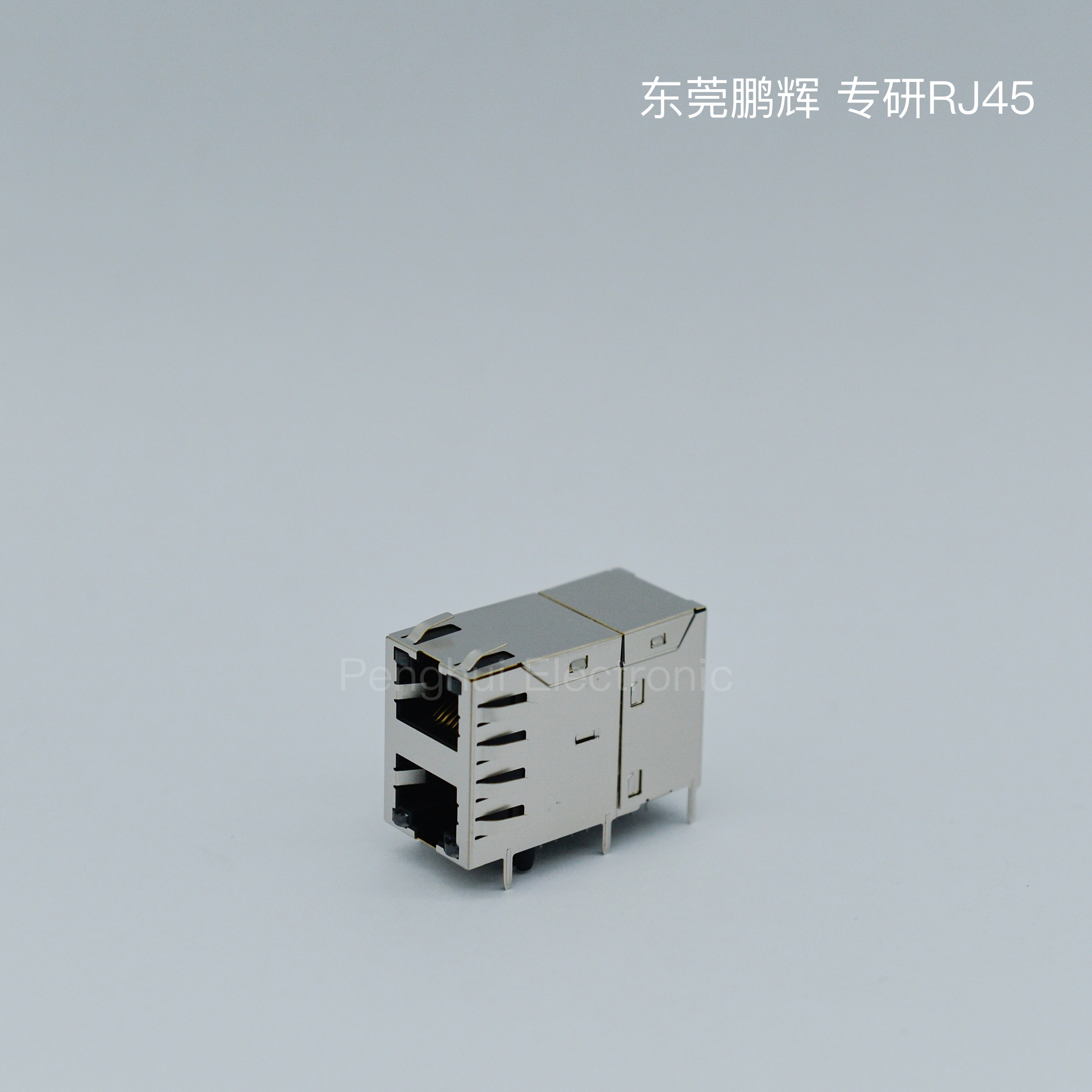

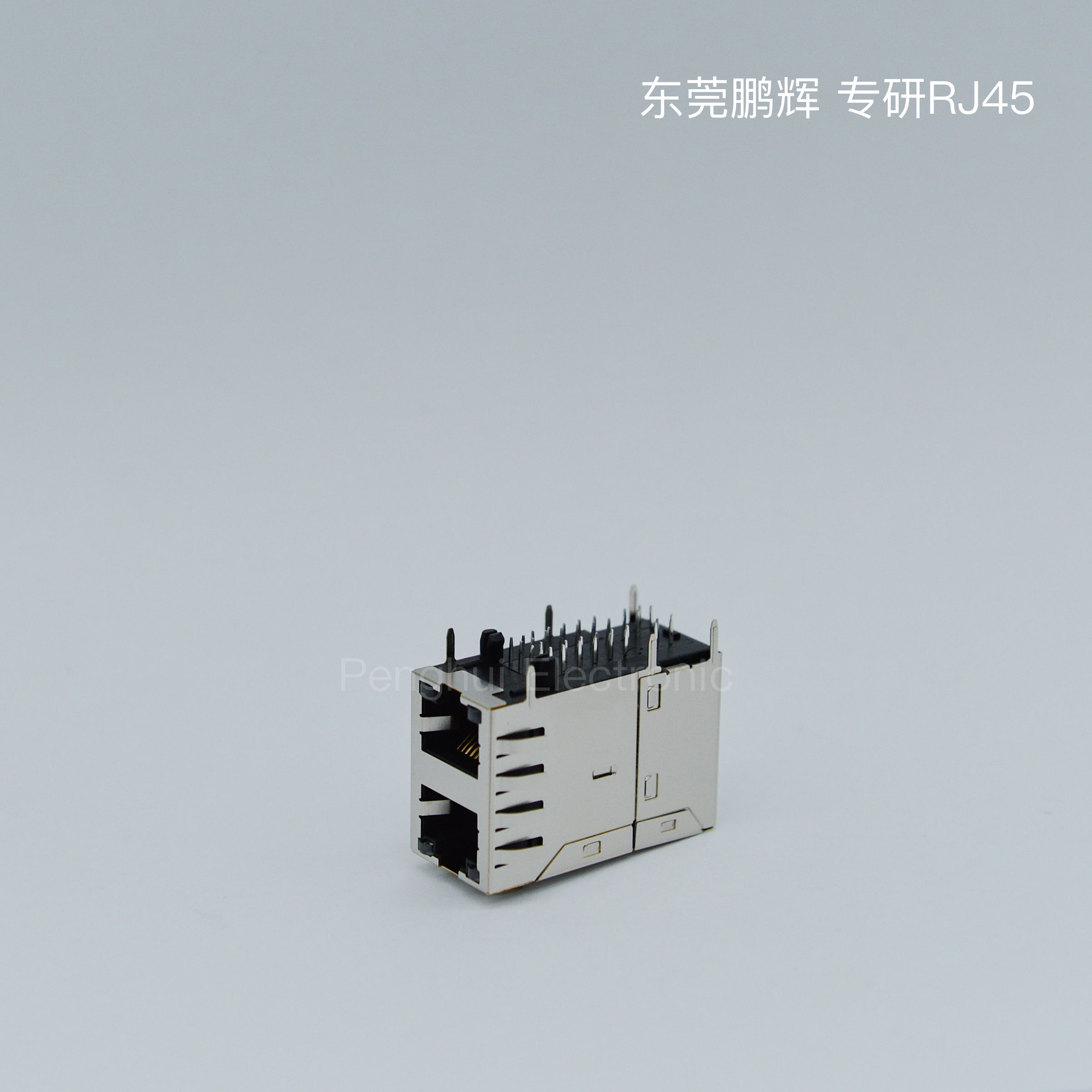

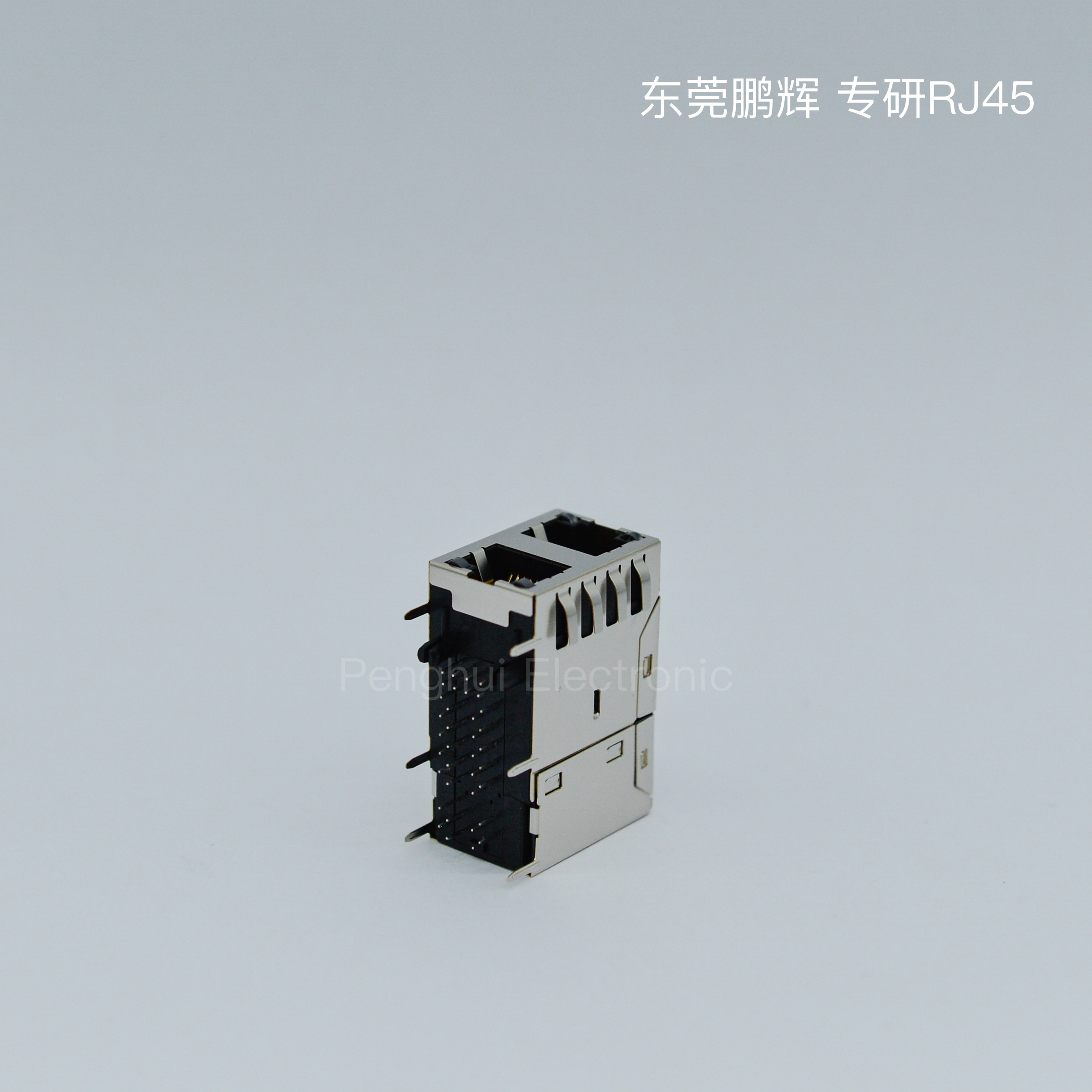

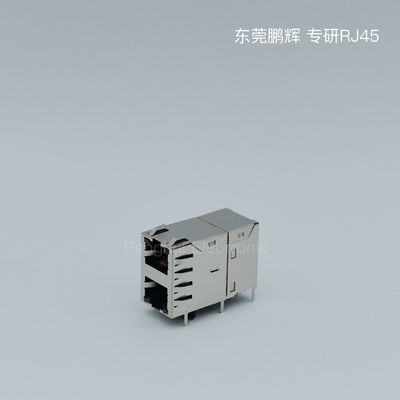

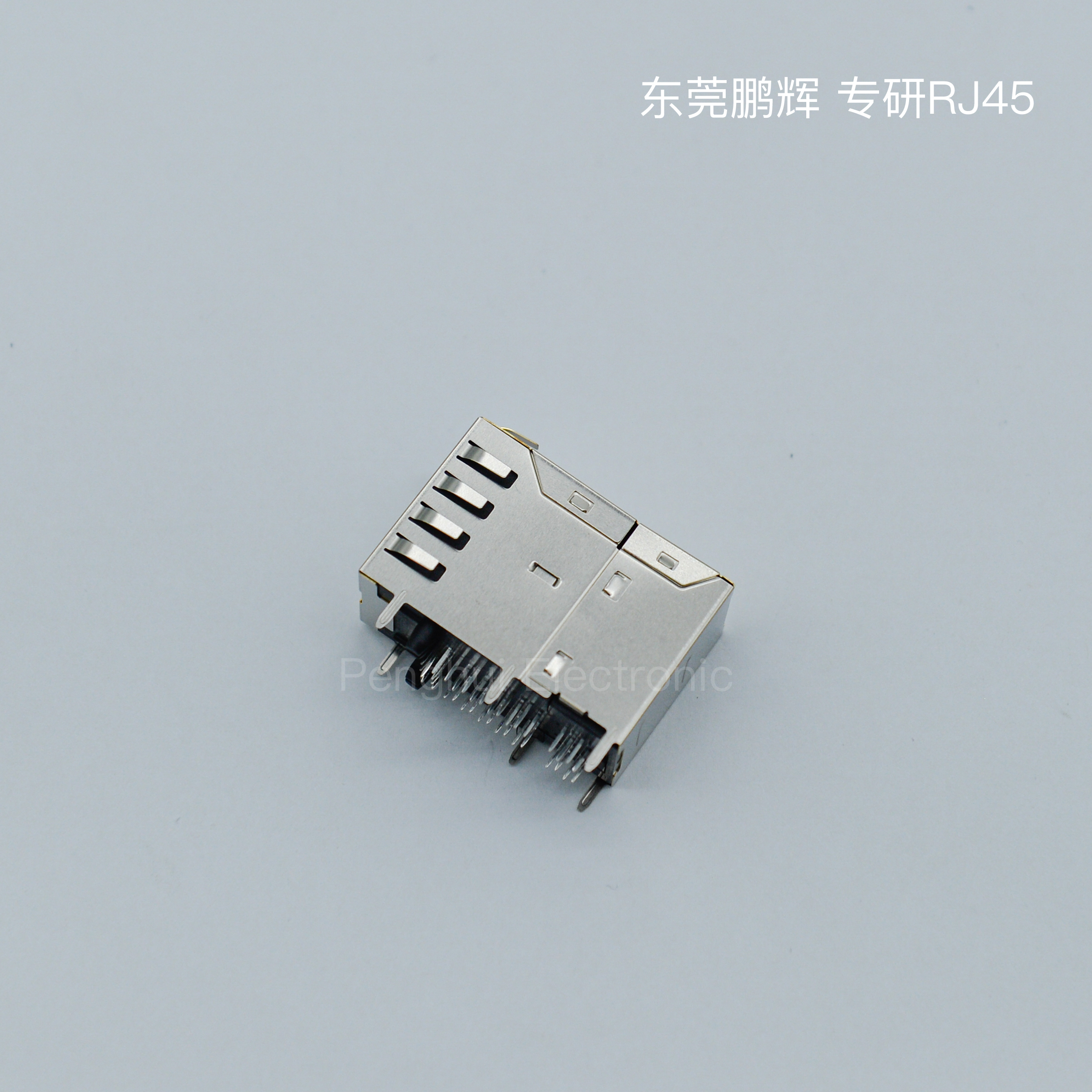

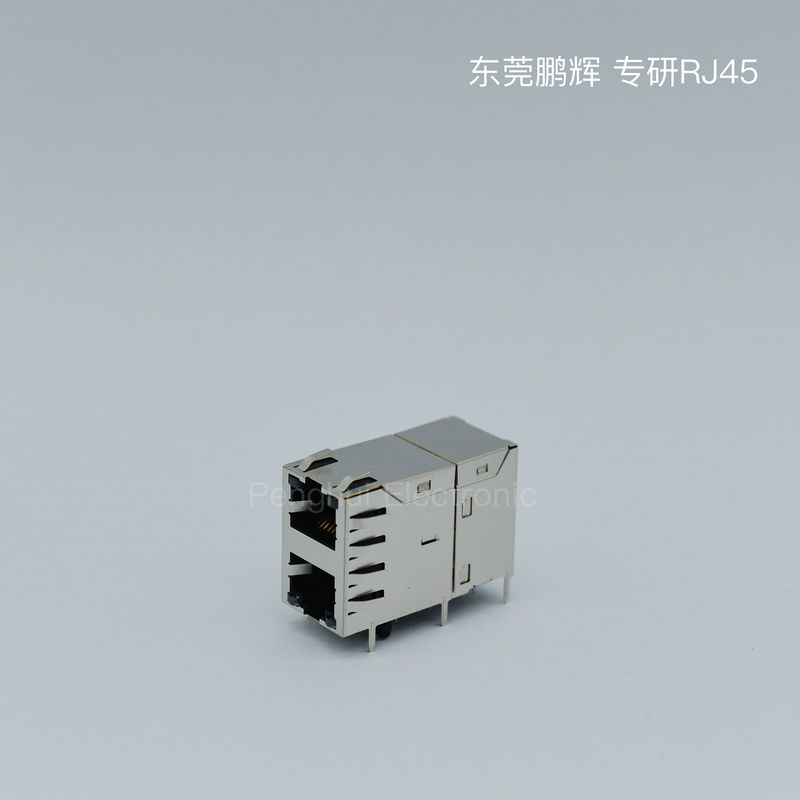

2XN stacked multi RJ45 with Magnetic and POE female RJ45

2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45 2XN stacked multi RJ45 with Magnetic and POE female RJ45 2XN stacked multi RJ45 with Magnetic and POE female RJ45 2XN stacked multi RJ45 with Magnetic and POE female RJ45
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: PHCONN
Certificering: ROHS UL certification
Modelnummer: R01-P7550523D5W
Min. bestelaantal: 500 stcs
Prijs: DongGuan Penghui electronics co.,ltd
Verpakking Details: Stand exportverpakking
Levertijd: 15-25 dagen
Betalingscondities: Western Union, T/T
Levering vermogen: 500k/maand
Beste prijs Contact nu
Gedetailleerde informatie
Pakket: Stand exportverpakking POE STD: IEEE 802.3AF/AT
Transformator: 10/100/1000/2.5G/5G BASE - T -opties Productnummer van poorten: 2/4/8/12/16 poortopties
Lasproces: Tht wave soldeering Linkerleiden: kleuropties, eenmalige kleur of dubbele kleur LED
Juiste leiden: kleuropties, eenmalige kleur of dubbele kleur LED Specificaties: R01 reeks
Originele Munafactuer: Phconn Sollicitatie: Server/switch/industriële apparatuur,/netwerkapparatuur
Poe Spec: Poe/Poe+/Poe ++ Afscherming van huisvesting: Koperlegering, Tin en Vernikkeld
EMI Finger: Met of zonder
Markeren:

Magnetic RJ45 jack with POE

,

Stacked multi RJ45 connector

,

Female RJ45 with magnetic attachment

Productomschrijving

2XN Stacked Multi RJ45 with Magnetic and POE Female RJ45
RJ45 with 10/100/1000 Magnetic with POE LED options
Material Specifications
  • Housing: PA46 UL94V-0 Black
  • Contact: Phosphor Bronze, Gold plated on contact area 6u"
  • Input Terminal: Brass
  • Metal shielding: Copper alloy with Nickel plated
Environmental Requirements
  • Lead-free process, compliant RoHS
Electrical Specifications @25°C
Inductance 350uH Min With 8mA DC bias
Insertion loss 1-100MHZ -1dB max
Return loss 1-30MHZ -18dB min
30-60MHZ -16dB min
60-80MHZ -12dB min
80-100MHZ -10dB min
Common Mode Rejection 1-100MHZ -30dB min
Cross Talk 1-100MHZ -30dB min
DC current 720mA MAX @57VDC continuous
Operating and Storage Temperature
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Wave Soldering Specifications
  • Peak temperature: 260°C

label:

rj45 PCB-schakelaar,

smt rj45-schakelaar,

Ethernetrj45 Hefboom
